# One Minute Paper Results

.pull-left[
**What was the most important thing you learned during this class?**
<img src="09-Predictive_Modeling_files/figure-html/unnamed-chunk-2-1.png" style="display: block; margin: auto;" />
]
.pull-right[
**What important question remains unanswered for you?**
<img src="09-Predictive_Modeling_files/figure-html/unnamed-chunk-3-1.png" style="display: block; margin: auto;" />
]

---
class: inverse, middle, center
# Classification and Regression Trees (CART)

---
# Classification and Regression Trees

The goal of CART methods is to find best predictor in X of some outcome, y. CART methods do this recursively using the following procedures:

* Find the best predictor in X for y.
* Split the data into two based upon that predictor.
* Repeat 1 and 2 with the split data sets until a stopping criteria has been reached.

There are a number of possible stopping criteria including: Only one data point remains.

* All data points have the same outcome value.
* No predictor can be found that sufficiently splits the data.

---
# Recursive Partitioning Logic of CART

.pull-left[
Consider the scatter plot to the right with the following characteristics:

* Binary outcome, G, coded “A” or “B”.
* Two predictors, x and z
* The vertical line at z = 3 creates the first partition.
* The double horizontal line at x = -4 creates the second partition.
* The triple horizontal line at x = 6 creates the third partition.
]
.pull-right[

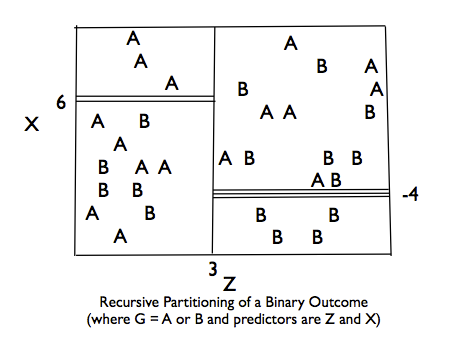

![](images/Partitioning.png)
]

---
# Tree Structure

.pull-left[
* The root node contains the full data set.
* The data are split into two mutually exclusive pieces. Cases where x > ci go to the right, cases where x <= ci go to the left.
* Those that go to the left reach a terminal node.
* Those on the right are split into two mutually exclusive pieces. Cases where z > c2 go to the right and terminal node 3; cases where z <= c2 go to the left and terminal node 2.
]
.pull-right[

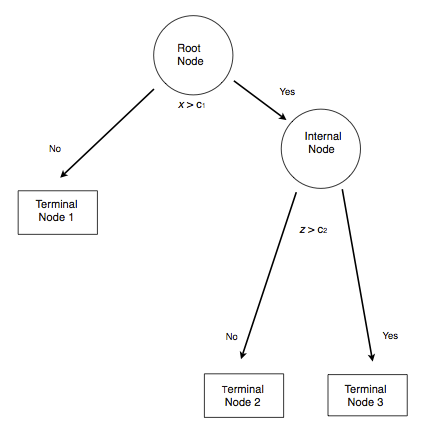

![](images/TreeDiagram.png)
]

---
# Sum of Squared Errors

The sum of squared errors for a tree *T* is:

`$$S=\sum _{ c\in leaves(T) }^{  }{ \sum _{ i\in c }^{  }{ { (y-{ m }_{ c }) }^{ 2 } }  }$$`

Where, `${ m }_{ c }=\frac { 1 }{ n } \sum _{ i\in c }^{  }{ { y }_{ i } }$`, the prediction for leaf \textit{c}.

Or, alternatively written as:

`$$S=\sum _{ c\in leaves(T) }^{  }{ { n }_{ c }{ V }_{ c } }$$`

Where `$V_{c}$` is the within-leave variance of leaf \textit{c}.

Our goal then is to find splits that minimize S.

---
# Advantages of CART Methods

* Making predictions is fast.

* It is easy to understand what variables are important in making predictions.

* Trees can be grown with data containing missingness. For rows where we cannot reach a leaf node, we can still make a prediction by averaging the leaves in the sub-tree we do reach.

* The resulting model will inherently include interaction effects. There are many reliable algorithms available.

---
# Regression Trees

In this example we will predict the median California house price from the house’s longitude and latitude.

``` r
str(calif)
```

```
## 'data.frame':	20640 obs. of  10 variables:
##  $ MedianHouseValue: num  452600 358500 352100 341300 342200 ...
##  $ MedianIncome    : num  8.33 8.3 7.26 5.64 3.85 ...
##  $ MedianHouseAge  : num  41 21 52 52 52 52 52 52 42 52 ...
##  $ TotalRooms      : num  880 7099 1467 1274 1627 ...
##  $ TotalBedrooms   : num  129 1106 190 235 280 ...
##  $ Population      : num  322 2401 496 558 565 ...
##  $ Households      : num  126 1138 177 219 259 ...
##  $ Latitude        : num  37.9 37.9 37.9 37.9 37.9 ...
##  $ Longitude       : num  -122 -122 -122 -122 -122 ...
##  $ cut.prices      : Factor w/ 4 levels "[1.5e+04,1.2e+05]",..: 4 4 4 4 4 4 4 3 3 3 ...
```

---
# Tree 1

``` r
treefit <- tree(log(MedianHouseValue) ~ Longitude + Latitude, data=calif)
plot(treefit); text(treefit, cex=0.75)
```

---
# Tree 1

---
# Tree 1

``` r
summary(treefit)
```

```
##
## Regression tree:
## tree(formula = log(MedianHouseValue) ~ Longitude + Latitude,
##     data = calif)
## Number of terminal nodes:  12
## Residual mean deviance:  0.1662 = 3429 / 20630
## Distribution of residuals:
##     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
## -2.75900 -0.26080 -0.01359  0.00000  0.26310  1.84100
```

Here “deviance” is the mean squared error, or root-mean-square error of `$\sqrt{.166} =  0.41$`.

---
# Tree 2, Reduce Minimum Deviance

We can increase the fit but changing the stopping criteria with the mindev parameter.

``` r
treefit2 <- tree(log(MedianHouseValue) ~ Longitude + Latitude, data=calif, mindev=.001)
summary(treefit2)
```

```
##
## Regression tree:
## tree(formula = log(MedianHouseValue) ~ Longitude + Latitude,
##     data = calif, mindev = 0.001)
## Number of terminal nodes:  68
## Residual mean deviance:  0.1052 = 2164 / 20570
## Distribution of residuals:
##     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
## -2.94700 -0.19790 -0.01872  0.00000  0.19970  1.60600
```

With the larger tree we now have a root-mean-square error of 0.32.

---
# Tree 2, Reduce Minimum Deviance

---
# Tree 3, Include All Variables

However, we can get a better fitting model by including the other variables.

``` r
treefit3 <- tree(log(MedianHouseValue) ~ ., data=calif)
summary(treefit3)
```

```
##
## Regression tree:
## tree(formula = log(MedianHouseValue) ~ ., data = calif)
## Variables actually used in tree construction:
## [1] "cut.prices"
## Number of terminal nodes:  4
## Residual mean deviance:  0.03608 = 744.5 / 20640
## Distribution of residuals:
##      Min.   1st Qu.    Median      Mean   3rd Qu.      Max.
## -1.718000 -0.127300  0.009245  0.000000  0.130000  0.358600
```

With all the available variables, the root-mean-square error is 0.11.

---
# Classification Trees

Predicting who survived the Titanic.

* `pclass`: Passenger class (1 = 1st; 2 = 2nd; 3 = 3rd)
* `survival`: A Boolean indicating whether the passenger survived or not (0 = No; 1 = Yes); this is our target
* `name`: A field rich in information as it contains title and family names
* `sex`: male/female
* `age`: Age, a significant portion of values are missing
* `sibsp`: Number of siblings/spouses aboard
* `parch`: Number of parents/children aboard
* `ticket`: Ticket number.
* `fare`: Passenger fare (British Pound).
* `cabin`: Does the location of the cabin influence chances of survival?
* `embarked`: Port of embarkation (C = Cherbourg; Q = Queenstown; S = Southampton)
* `boat`: Lifeboat, many missing values
* `body`: Body Identification Number
* `home.dest`: Home/destination

---
# Classification using `rpart`

``` r
(titanic.rpart <- rpart(survived ~ pclass + sex + age + sibsp,
   data=titanic.train))
```

```
## n= 981
##
## node), split, n, deviance, yval
##       * denotes terminal node
##
## 1) root 981 231.651400 0.3822630
##   2) sex=male 635  99.174800 0.1937008
##     4) age>=3.5 614  89.003260 0.1758958
##       8) pclass>=1.5 485  55.554640 0.1319588 *
##       9) pclass< 1.5 129  28.992250 0.3410853 *
##     5) age< 3.5 21   4.285714 0.7142857 *
##   3) sex=female 346  68.462430 0.7283237
##     6) pclass>=2.5 163  40.748470 0.5030675 *
##     7) pclass< 2.5 183  12.076500 0.9289617 *
```

---
# Classification using `rpart`

``` r
plot(titanic.rpart); text(titanic.rpart, use.n=TRUE, cex=1)
```

---
# Classification using `ctree`

``` r
(titanic.ctree <- ctree(survived ~ pclass + sex + age + sibsp, data=titanic.train))
```

```
##
## 	 Conditional inference tree with 7 terminal nodes
##
## Response:  survived
## Inputs:  pclass, sex, age, sibsp
## Number of observations:  981
##
## 1) sex == {female}; criterion = 1, statistic = 270.812
##   2) pclass <= 2; criterion = 1, statistic = 72.474
##     3)*  weights = 183
##   2) pclass > 2
##     4) sibsp <= 2; criterion = 0.982, statistic = 8.096
##       5)*  weights = 145
##     4) sibsp > 2
##       6)*  weights = 18
## 1) sex == {male}
##   7) pclass <= 1; criterion = 1, statistic = 18.975
##     8) age <= 53; criterion = 0.994, statistic = 10
##       9)*  weights = 102
##     8) age > 53
##       10)*  weights = 28
##   7) pclass > 1
##     11) age <= 3; criterion = 1, statistic = 19.115
##       12)*  weights = 20
##     11) age > 3
##       13)*  weights = 485
```

---
# Classification using `ctree`

``` r
plot(titanic.ctree)
```

---
# Ensemble Methods

Ensemble methods use multiple models that are combined by weighting, or averaging, each individual model to provide an overall estimate. Each model is a random sample of the sample. Common ensemble methods include:

* *Boosting* - Each successive trees give extra weight to points incorrectly predicted by earlier trees. After all trees have been estimated, the prediction is determined by a weighted “vote” of all predictions (i.e. results of each individual tree model).

* *Bagging* - Each tree is estimated independent of other trees. A simple “majority vote” is take for the prediction.

* *Random Forests* - In addition to randomly sampling the data for each model, each split is selected from a random subset of all predictors.

* *Super Learner* - An ensemble of ensembles. See https://cran.r-project.org/web/packages/SuperLearner/vignettes/Guide-to-SuperLearner.html

---
class: font90
# Random Forests

The random forest algorithm works as follows:

1. Draw `$n_{tree}$` bootstrap samples from the original data.

2. For each bootstrap sample, grow an unpruned tree. At each node, randomly sample `$m_{try}$` predictors and choose the best split among those predictors selected<footnote>Bagging is a special case of random forests where `$m_{try} = p$` where *p* is the number of predictors</footnote>.

3. Predict new data by aggregating the predictions of the ntree trees (majority votes for classification, average for regression).

Error rates are obtained as follows:

1. At each bootstrap iteration predict data not in the bootstrap sample (what Breiman calls “out-of-bag”, or OOB, data) using the tree grown with the bootstrap sample.

2. Aggregate the OOB predictions. On average, each data point would be out-of-bag 36% of the times, so aggregate these predictions. The calculated error rate is called the OOB estimate of the error rate.

---
# Random Forests: Titanic

``` r
titanic.rf <- randomForest(factor(survived) ~ pclass + sex + age + sibsp,
						   data = titanic.train,
						   ntree = 5000,
						   importance = TRUE)
```

``` r
importance(titanic.rf)
```

```
##                0         1 MeanDecreaseAccuracy MeanDecreaseGini
## pclass  86.71559 113.66037            128.78637         43.17347
## sex    221.84387 297.11544            302.47373        123.40293
## age    107.26299  59.40094            132.18797         60.01607
## sibsp  101.00587 -13.80848             83.50562         19.86861
```

---
# Random Forests: Titanic (cont.)

``` r
importance(titanic.rf)
```

---
# Random Forests: Titanic

``` r
min_depth_frame <- min_depth_distribution(titanic.rf)
```

``` r
plot_min_depth_distribution(min_depth_frame)
```

---
class: inverse, middle, center
# Predictive Modeling

---
# Example: Hours Studying Predicting Passing

``` r
study <- data.frame(
	Hours=c(0.50,0.75,1.00,1.25,1.50,1.75,1.75,2.00,2.25,2.50,2.75,3.00,
			3.25,3.50,4.00,4.25,4.50,4.75,5.00,5.50),
	Pass=c(0,0,0,0,0,0,1,0,1,0,1,0,1,0,1,1,1,1,1,1)
)
study[sample(nrow(study), 5),]
```

```
##    Hours Pass
## 2   0.75    0
## 5   1.50    0
## 12  3.00    0
## 8   2.00    0
## 16  4.25    1
```

``` r
tab <- describeBy(study$Hours, group = study$Pass, mat = TRUE, skew = FALSE)
tab$group1 <- as.integer(as.character(tab$group1))
```

---
# Prediction

Odds (or probability) of passing if studied **zero** hours?

`$$log(\frac{p}{1-p}) = -4.078 + 1.505 \times 0$$`
`$$\frac{p}{1-p} = exp(-4.078) = 0.0169$$`
`$$p = \frac{0.0169}{1.169} = .016$$`

Odds (or probability) of passing if studied **4** hours?

`$$log(\frac{p}{1-p}) = -4.078 + 1.505 \times 4$$`
`$$\frac{p}{1-p} = exp(1.942) = 6.97$$`
`$$p = \frac{6.97}{7.97} = 0.875$$`

---
# Fitted Values

``` r
study[1,]
```

```
##   Hours Pass
## 1   0.5    0
```

``` r
logistic <- function(x, b0, b1) {
	return(1 / (1 + exp(-1 * (b0 + b1 * x)) ))
}
logistic(.5, b0=-4.078, b1=1.505)
```

```
## [1] 0.03470667
```

---
# Model Performance

The use of statistical models to predict outcomes, typically on new data, is called predictive modeling. Logistic regression is a common statistical procedure used for prediction. We will utilize a **confusion matrix** to evaluate accuracy of the predictions.

---
class: font80
# Predicting Heart Attacks

Source: https://www.kaggle.com/datasets/imnikhilanand/heart-attack-prediction?select=data.csv

``` r
heart <- read.csv('../course_data/heart_attack_predictions.csv')
heart <- heart |>
	mutate_if(is.character, as.numeric) |>
	select(!c(slope, ca, thal))
str(heart)
```

```
## 'data.frame':	294 obs. of  11 variables:
##  $ age     : int  28 29 29 30 31 32 32 32 33 34 ...
##  $ sex     : int  1 1 1 0 0 0 1 1 1 0 ...
##  $ cp      : int  2 2 2 1 2 2 2 2 3 2 ...
##  $ trestbps: num  130 120 140 170 100 105 110 125 120 130 ...
##  $ chol    : num  132 243 NA 237 219 198 225 254 298 161 ...
##  $ fbs     : num  0 0 0 0 0 0 0 0 0 0 ...
##  $ restecg : num  2 0 0 1 1 0 0 0 0 0 ...
##  $ thalach : num  185 160 170 170 150 165 184 155 185 190 ...
##  $ exang   : num  0 0 0 0 0 0 0 0 0 0 ...
##  $ oldpeak : num  0 0 0 0 0 0 0 0 0 0 ...
##  $ num     : int  0 0 0 0 0 0 0 0 0 0 ...
```

Note: `num` is the diagnosis of heart disease (angiographic disease status) (i.e. Value 0: < 50% diameter narrowing -- Value 1: > 50% diameter narrowing)

---
# Missing Data

We will save this for another day...

``` r
complete.cases(heart) |> table()
```

```
##
## FALSE  TRUE
##    33   261
```

``` r
mice_out <- mice::mice(heart, m = 1)
```

```
##
##  iter imp variable
##   1   1  trestbps  chol  fbs  restecg  thalach  exang
##   2   1  trestbps  chol  fbs  restecg  thalach  exang
##   3   1  trestbps  chol  fbs  restecg  thalach  exang
##   4   1  trestbps  chol  fbs  restecg  thalach  exang
##   5   1  trestbps  chol  fbs  restecg  thalach  exang
```

``` r
heart <- mice::complete(mice_out)
```

---
# Data Setup

We will split the data into a training set (70% of observations) and validation set (30%).

``` r
train.rows <- sample(nrow(heart), nrow(heart) * .7)
heart_train <- heart[train.rows,]
heart_test <- heart[-train.rows,]
```

This is the proportions of survivors and defines what our "guessing" rate is. That is, if we guessed no one had a heart attack, we would be correct 62% of the time.

``` r
(heart_attack <- table(heart_train$num) %>% prop.table)
```

```
##
##         0         1
## 0.5853659 0.4146341
```

---
class: font80
# Model Training

``` r
lr.out <- glm(num ~ ., data=heart_train, family=binomial(link = 'logit'))
summary(lr.out)
```

```
##
## Call:
## glm(formula = num ~ ., family = binomial(link = "logit"), data = heart_train)
##
## Coefficients:
##              Estimate Std. Error z value Pr(>|z|)
## (Intercept) -7.262241   3.870417  -1.876  0.06061 .
## age         -0.005004   0.032863  -0.152  0.87897
## sex          1.375006   0.573109   2.399  0.01643 *
## cp           0.816113   0.268692   3.037  0.00239 **
## trestbps     0.006208   0.013673   0.454  0.64982
## chol         0.010633   0.003579   2.971  0.00297 **
## fbs          2.209676   0.898954   2.458  0.01397 *
## restecg     -0.669812   0.617047  -1.086  0.27770
## thalach     -0.010094   0.012446  -0.811  0.41731
## exang        1.444581   0.526696   2.743  0.00609 **
## oldpeak      1.287189   0.310821   4.141 3.45e-05 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## (Dispersion parameter for binomial family taken to be 1)
##
##     Null deviance: 278.19  on 204  degrees of freedom
## Residual deviance: 135.48  on 194  degrees of freedom
## AIC: 157.48
##
## Number of Fisher Scoring iterations: 6
```

---
# Predicted Values

``` r
heart_train$prediction <- predict(lr.out, type = 'response', newdata = heart_train)
ggplot(heart_train, aes(x = prediction, color = num == 1)) + geom_density()
```

---
# Results

``` r
heart_train$prediction_class <- heart_train$prediction > 0.5
tab <- table(heart_train$prediction_class,
			 heart_train$num) %>% prop.table() %>% print()
```

```
##
##                  0          1
##   FALSE 0.53658537 0.08292683
##   TRUE  0.04878049 0.33170732
```

For the training set, the overall accuracy is 86.83%. Recall that 58.54% people did not have a heart attach. Therefore, the simplest model would be to predict that no one had a heart attack, which would mean we would be correct 58.54% of the time. Therefore, our prediction model is 28.29% better than guessing.

---
# Checking with the validation dataset

``` r
(survived_test <- table(heart_test$num) %>% prop.table())
```

```
##
##         0         1
## 0.7640449 0.2359551
```

``` r
heart_test$prediction <- predict(lr.out, newdata = heart_test, type = 'response')
heart_test$prediciton_class <- heart_test$prediction > 0.5
tab_test <- table(heart_test$prediciton_class, heart_test$num) %>%
	prop.table() %>% print()
```

```
##
##                  0          1
##   FALSE 0.65168539 0.08988764
##   TRUE  0.11235955 0.14606742
```

The overall accuracy is 79.78%, or 3.4% better than guessing.

---
class: font90
# Receiver Operating Characteristic (ROC) Curve

The ROC curve is created by plotting the true positive rate (TPR; AKA sensitivity) against the false positive rate (FPR; AKA probability of false alarm) at various threshold settings.

.pull-left[

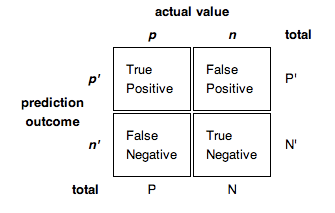

In a classification model, outcomes are either as positive (*p*) or negative (*n*). There are then four possible outcomes:

* **true positive** (TP) The outcome from a prediction is *p* and the actual value is also *p*.
* **false positive** (FP) The actual value is *n*.
* **true negative** (TN) Both the prediction outcome and the actual value are *n*.
* **false negative** (FN) The prediction outcome is *n* while the actual value is *p*.

]
.pull-right[
![](images/rocdiagram.png)

``` r
roc <- calculate_roc(heart_train$prediction,
					 heart_train$num == 1)
summary(roc)
```

```
## AUC = 0.926
## Cost of false-positive = 1
## Cost of false-negative = 1
## Threshold with minimum cost = 0.475
```

]

---

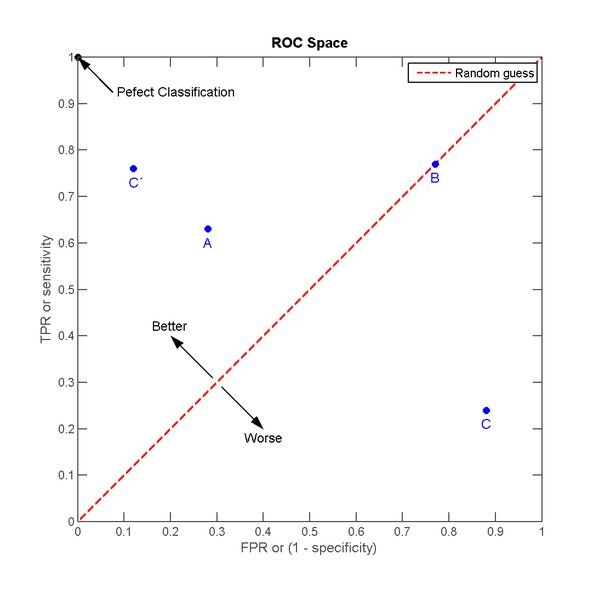

# ROC Curve

.center[
![](images/ROCspace.png)
]

---
# ROC Curve

``` r
plot(roc, curve = 'accuracy')
```

---
# ROC Curve

``` r
plot(roc)
```

---
class: font90
# Caution on Interpreting Accuracy

- [Loh, Sooo, and Zing](http://cs229.stanford.edu/proj2016/report/LohSooXing-PredictingSexualOrientationBasedOnFacebookStatusUpdates-report.pdf) (2016) predicted sexual orientation based on Facebook Status.

- They reported model accuracies of approximately 90% using SVM, logistic regression and/or random forest methods.

- [Gallup](https://news.gallup.com/poll/234863/estimate-lgbt-population-rises.aspx) (2018) poll estimates that 4.5% of the Americal population identifies as LGBTG+.

- *My proposed model:* I predict all Americans are heterosexual.

- The accuracy of my model is 95.5%, or *5.5% better than Facebook's model!*

- Predicting "rare" events (i.e. when the proportion of one of the two outcomes large) is difficult and requires independent (predictor) variables that strongly associated with the dependent (outcome) variable.

---
# Fitted Values Revisited

What happens when the ratio of true-to-false increases (i.e. want to predict "rare" events)?

Let's simulate a dataset where the ratio of true-to-false is 10-to-1. We can also define the distribution of the dependent variable. Here, there is moderate separation in the distributions.

``` r
test.df2 <- getSimulatedData(
	treat.mean=.6, control.mean=.4)
```

The `multilevelPSA::psrange` function will sample with varying ratios from 1:10 to 1:1. It takes multiple samples and averages the ranges and distributions of the fitted values from logistic regression.

``` r
psranges2 <- psrange(test.df2, test.df2$treat, treat ~ .,
					 samples=seq(100,1000,by=100), nboot=20)
```

---
# Fitted Values Revisited (cont.)

``` r
plot(psranges2)
```

---
class: left, font140
# One Minute Paper

.pull-left[
1. What was the most important thing you learned during this class?
2. What important question remains unanswered for you?
]
.pull-right[
<img src="09-Predictive_Modeling_files/figure-html/unnamed-chunk-36-1.png" style="display: block; margin: auto;" />
]

https://forms.gle/sTwKB3HivjtbafBb7
